A multitude of niches, boxes and compartments (in the dashboard, behind the footrest wall and under the driver's seat) allow you to have everything you need on the road at your fingertips.
GAZELLE NEXT VAN
Driver's seat with armrest has anatomic back support and five adjustments. Steering column is tilt-adjustable and telescopic folding provides additional protection.
Power windows can be fully opened and closed in 5 seconds. Optionally, GAZELLE NEXT can be equipped with electrically adjustable mirrors providing for easier rear view adjustment.
Base vehicle comes with audio arrangements for installation of multimedia equipment, or optionally GAZELLE NEXT may be equipped with a 2DIN stereo.
Active safety systems are aimed at eliminating the risk of an accident. GAZELLE NEXT has ABS braking system as standard.
GAZELLE NEXT has large side mirrors consisting of two parts. The upper part of the mirror is electrically heated, improving visibility in cold weather. The lower part of the mirror is spherical - to increase the view angle and minimise blind spots.
GAZELLE NEXT headlamps have a large reflector area and their illumination performance fulfils all international safety standards.
To increase the level of passive safety, the GAZELLE NEXT has programmable deformation zones. Driver and passenger protection is also ensured by increasing the rigidity of the body and frame.
GAZELLE NEXT steering sharpness and clearance is achieved by combining steering and wheel suspension into a single module. Such front suspension parameters are perfectly fit for hard operating conditions.
Double wishbone independent front suspension is a modern truck suspension system with a large safety margin, better stability and steering as well as high ride smoothness.
Upgraded Spicer-type axle with modern shock absorbers reduces the frame load, significantly increases the loading capacity of the vehicle and provides better stability on the road.
68 fully galvanised and 16 plastic parts guarantee no through corrosion for 5 years or 150,000 km.
A rear-wheel drive vehicle with twin rear tires offers better off-road capability due to the larger contact patch between the drive wheels and the road (e.g. climbing on icy roads). Besides, if one of the rear wheels goes flat, the vehicle can be safely brought to a stop.
Van functionality
The handrail on the right rear pillar makes entry easier, without reducing the window opening area.
The plastic rear bumper on a reinforced metal base doubles as a footstep (130 mm deep).
Maximum width of the rear doors opening, which takes the full height from floor to ceiling - without any "dead" zones. The wide and high sliding door fitted with a new reliable mechanism by Rollmech Automotiv, facilitates the loading-unloading process.
There is a deep luggage shelf above the front row of seats with a carrying capacity of up to 30 kg.
The high lining of the cargo compartment sidewalls and the 9 mm thick plywood flooring which are included in the base trim protect the body surface from abrasion and damage.
A special hatch under the passenger seat allows transporting items up to 5 m long.
A set of 10 lashing eyes allows securing the load.
Fully opened doors (at 270o) are held in place automatically by means of magnetic holders.

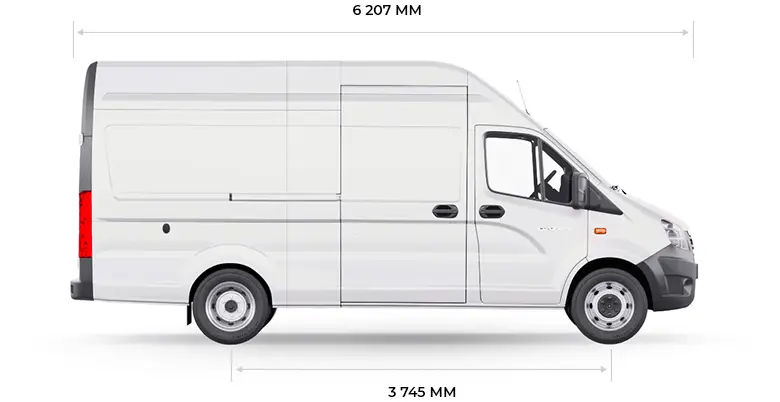

DIMENSIONS, l/w/h
6207/2068/2735

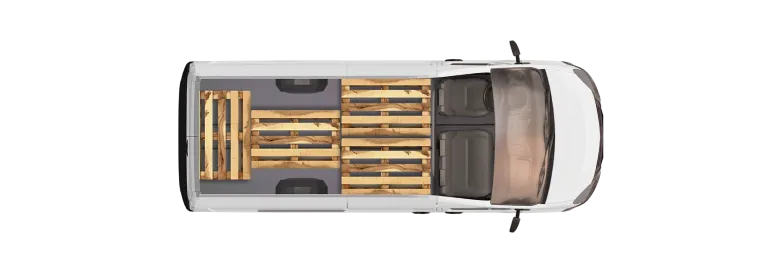

GAZELLE NEXT VAN LONG BASE (3 seats)
Wheel arrangement
4х2
Drive type
Rear
Gross weight, kg
3500
Curb weight, kg
2585
Wheelbase, mm
3745
Front wheel track, mm
1750
Rear wheel track (between the middle of twin tires), mm
1560
Clearance (under the rear axle crankcase at full weight), mm
170
Minimum turning radius along the track of the outer front wheel, m
6,5
Number of passenger seats (without driver)
2
Total number of seats
3
Fuel tank capacity, litres
80
Loading height, mm
730

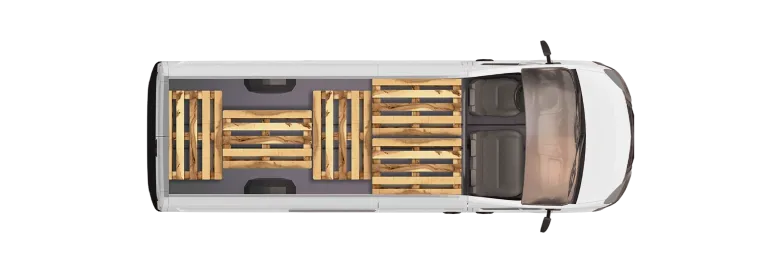

Internal overall dimensions of the body, mm L/W/H
3631/1860/1927
Volume of cargo compartment, cubic m
13,5
GAZELLE NEXT VAN LONG BASE (3 seats)
Type
Diesel, turbocharged with intercooler
Engine
G31/G51
Number and arrangement of cylinders
4, in-line
Emission standards / Aftertreatment system
3 or 5
Displacement, litres
2,499
Output, kW (hp)/min
100 (149,6) at 3200 rpm
Max. torque, Nm/min
330 at 1200-3100 rpm
TRANSMISSION
Manual, 5-speed
Maximum speed, km/h
130

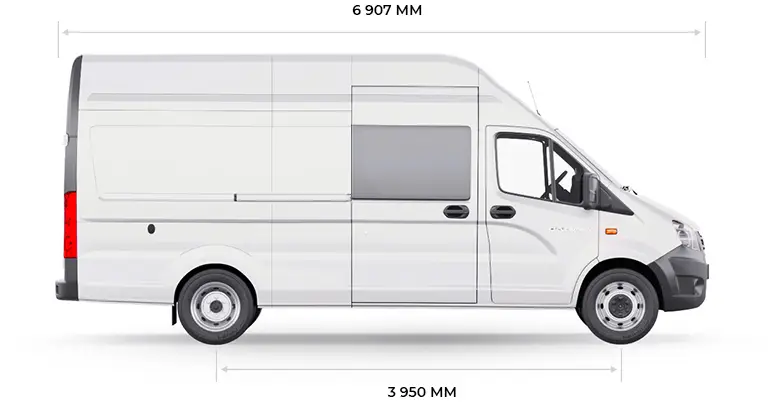

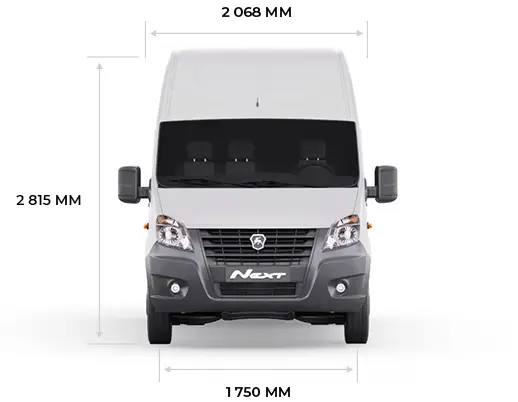

DIMENSIONS, l/w/h
6907/2068/2815
GAZELLE NEXT VAN LONG BASE (3 seats)
Wheel arrangement
4х2
Drive type
Rear
Gross weight, kg
4600
Curb weight, kg
2785
Wheelbase, mm
3950
Front wheel track, mm
1750
Rear wheel track (between the middle of twin tires), mm
1560
Clearance (under the rear axle crankcase at full weight), mm
170
Minimum turning radius along the track of the outer front wheel, m
6,8
Number of passenger seats (without driver)
2
Total number of seats
3
Fuel tank capacity, litres
80
Loading height, mm
730
Internal overall dimensions of the body, mm L/W/H
4331/1860/1927
Volume of cargo compartment, cubic m
15,3
GAZELLE NEXT VAN LONG BASE (3 seats)
Type
Diesel, turbocharged with intercooler
Engine
G31/G51
Number and arrangement of cylinders
4, in-line
Emission standards / Aftertreatment system
3 or 5
Displacement, litres
2,499
Output, kW (hp)/min
100 (149,6) at 3200 rpm
Max. torque, Nm/min
330 at 1200-3100 rpm
TRANSMISSION
Manual, 5-speed
Maximum speed, km/h
130

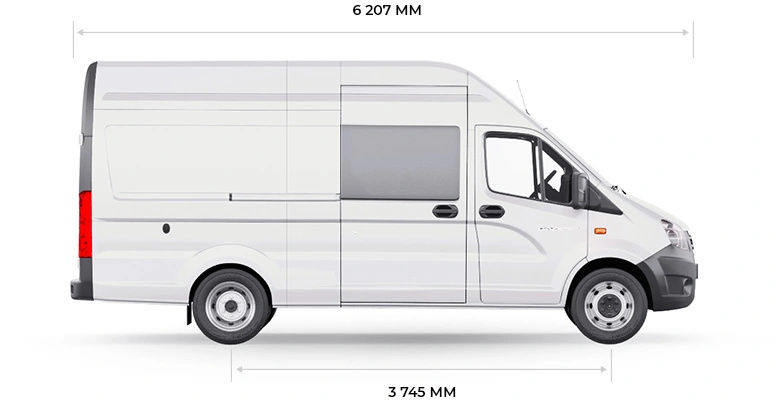

DIMENSIONS, l/w/h
6207/2068/2735

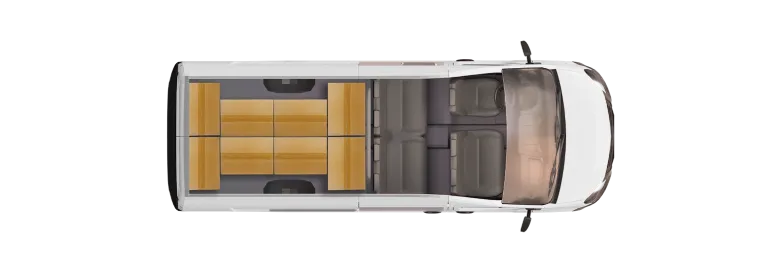

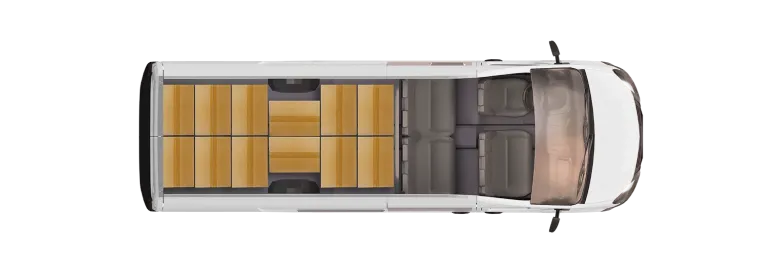

GAZELLE NEXT VAN LONG BASE (7 seats)
Wheel arrangement
4х2
Drive type
Rear
Gross weight, kg
3500
Curb weight, kg
2700
Wheelbase, mm
3745
Front wheel track, mm
1750
Rear wheel track (between the middle of twin tires), mm
1560
Clearance (under the rear axle crankcase at full weight), mm
170
Minimum turning radius along the track of the outer front wheel, m
6,5
Number of passenger seats (without driver)
6
Total number of seats
7
Fuel tank capacity, litres
80
Loading height, mm
730
Internal overall dimensions of the body, mm L/W/H
3000/1860/1927
Volume of cargo compartment, cubic m
9,5
GAZELLE NEXT VAN LONG BASE (7 seats)
Type
Diesel, turbocharged with intercooler
Engine
G31/G51
Number and arrangement of cylinders
4, in-line
Emission standards / Aftertreatment system
3 or 5
Displacement, litres
2,499
Output, kW (hp)/min
100 (149,6) at 3200 rpm
Max. torque, Nm/min
330 at 1200-3100 rpm
TRANSMISSION
Manual, 5-speed
Maximum speed, km/h
130

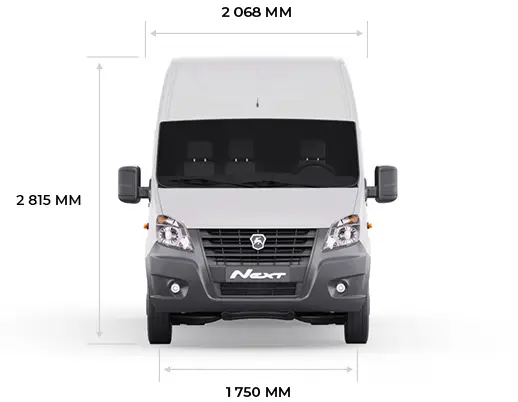

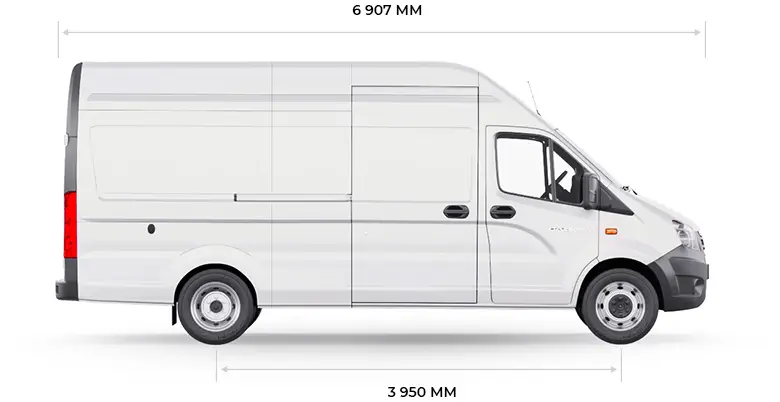

DIMENSIONS, l/w/h
6907/2068/2815
GAZELLE NEXT VAN LONG BASE (7 seats)
Wheel arrangement
4х2
Drive type
Rear
Gross weight, kg
4600
Curb weight, kg
2785
Wheelbase, mm
3950
Front wheel track, mm
1750
Rear wheel track (between the middle of twin tires), mm
1560
Clearance (under the rear axle crankcase at full weight), mm
170
Minimum turning radius along the track of the outer front wheel, m
6,8
Number of passenger seats (without driver)
6
Total number of seats
7
Fuel tank capacity, litres
80
Loading height, mm
730
Internal overall dimensions of the body, mm L/W/H
3700/1860/1927
Volume of cargo compartment, cubic m
11,3
GAZELLE NEXT VAN LONG BASE (7 seats)
Type
Diesel, turbocharged with intercooler
Engine
G31/G51
Number and arrangement of cylinders
4, in-line
Emission standards / Aftertreatment system
3 or 5
Displacement, litres
2,499
Output, kW (hp)/min
100 (149,6) at 3200 rpm
Max. torque, Nm/min
330 at 1200-3100 rpm
TRANSMISSION
Manual, 5-speed
Maximum speed, km/h
130
